A comparison of leading electrical safety analyzers by features, compliance, and performance.
Electrical safety analyzers help ensure medical devices operate safely and in compliance with regulatory standards before they’re used in patient care. By measuring parameters such as leakage current, insulation resistance, and ground continuity, these instruments play a key role in verifying electrical integrity and patient safety.
This comparison guide highlights key specifications and features across leading models, including standards compliance, current capacity, automation and workflow options, simulation capabilities, data management tools, and pricing—helping HTM professionals select the right analyzer for their testing requirements.

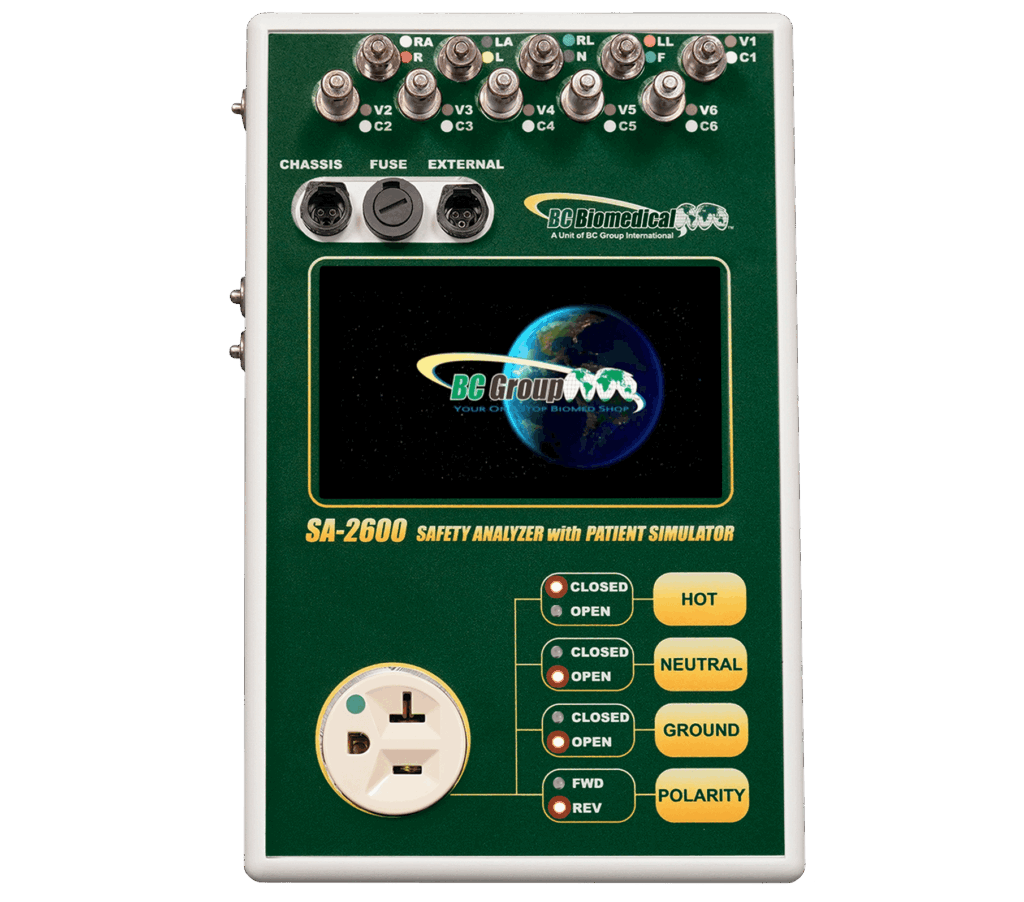

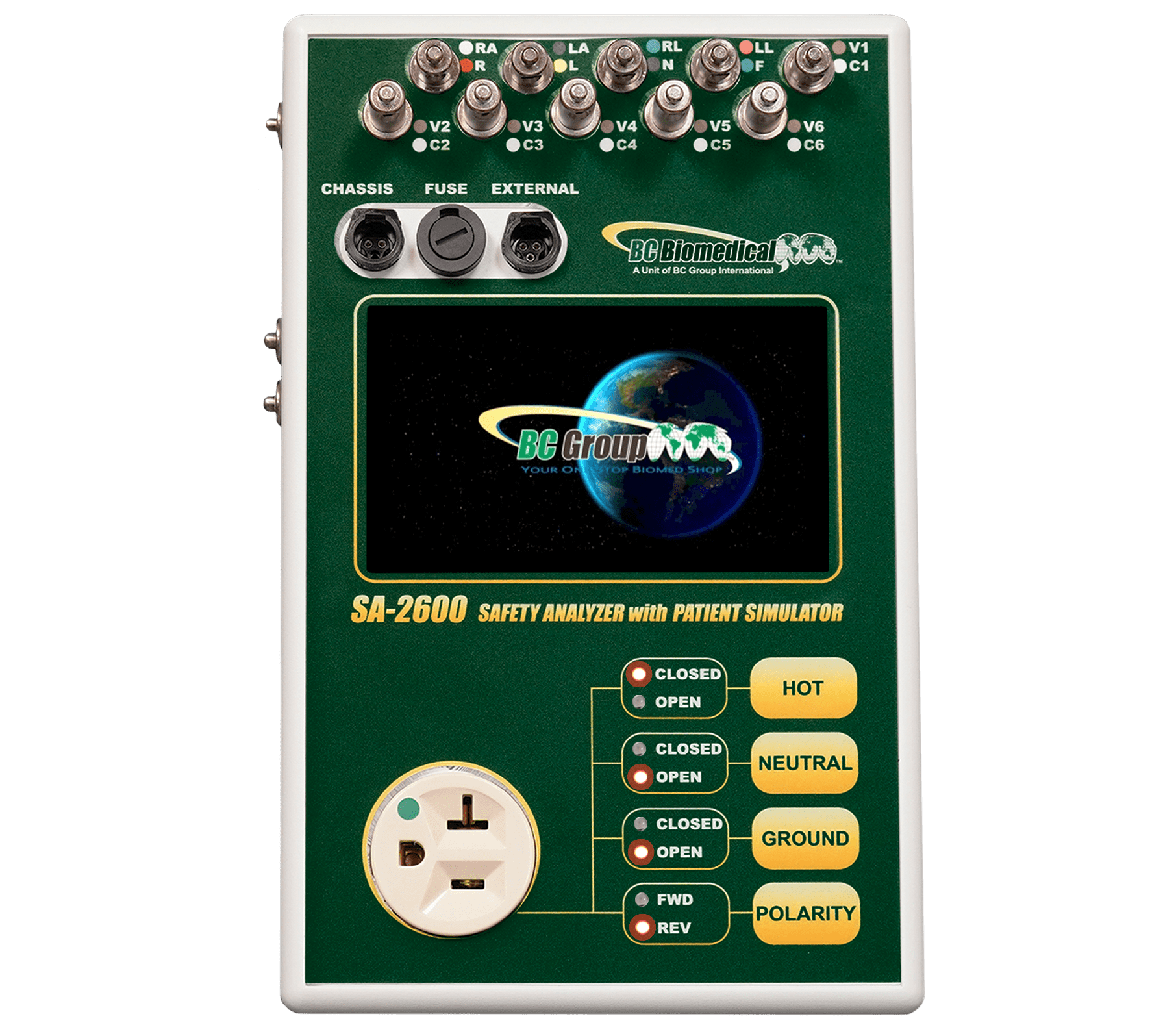

BC Group International – SA-2600

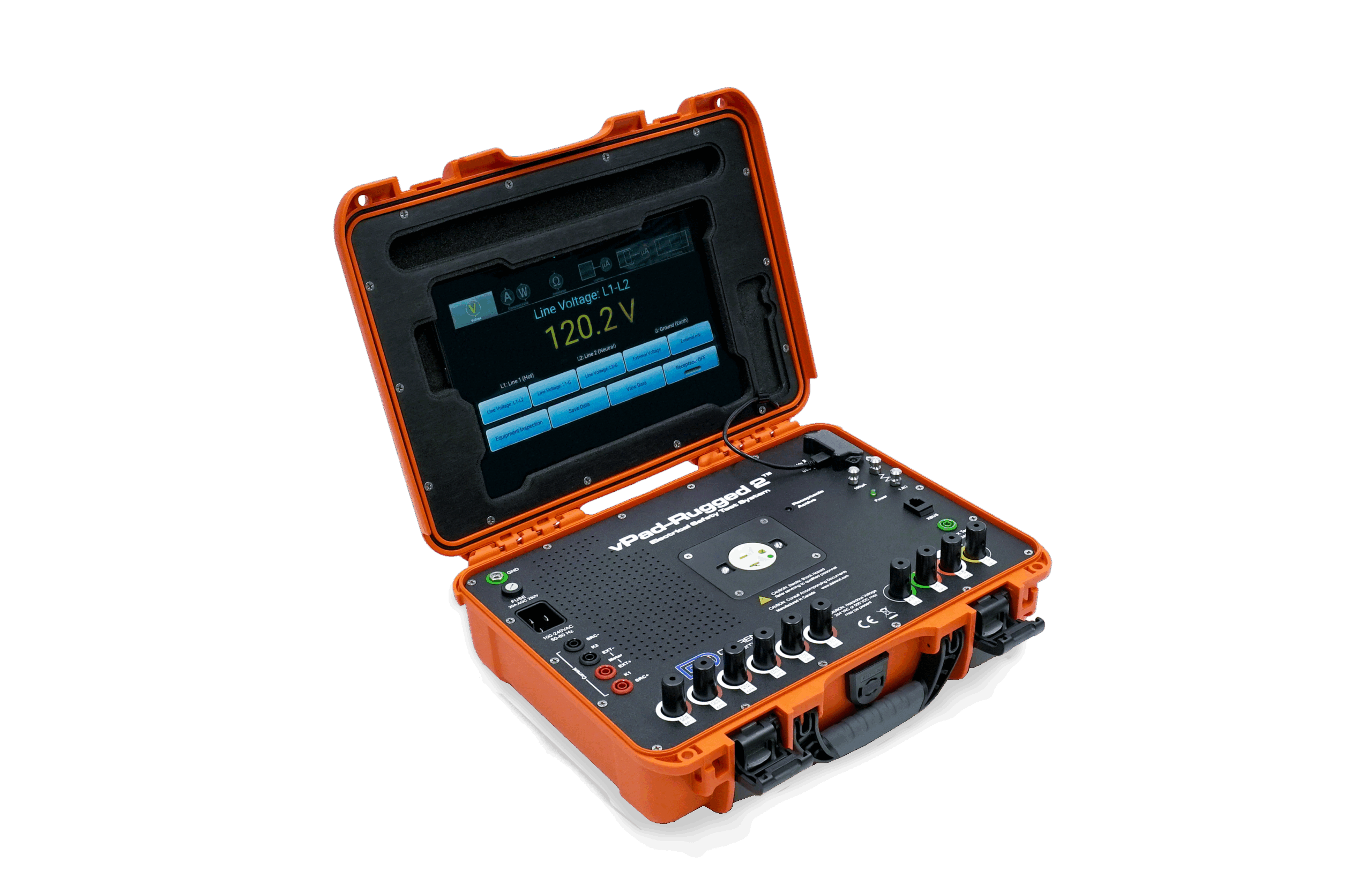

Datrend Systems Inc – vPad-Rugged 2

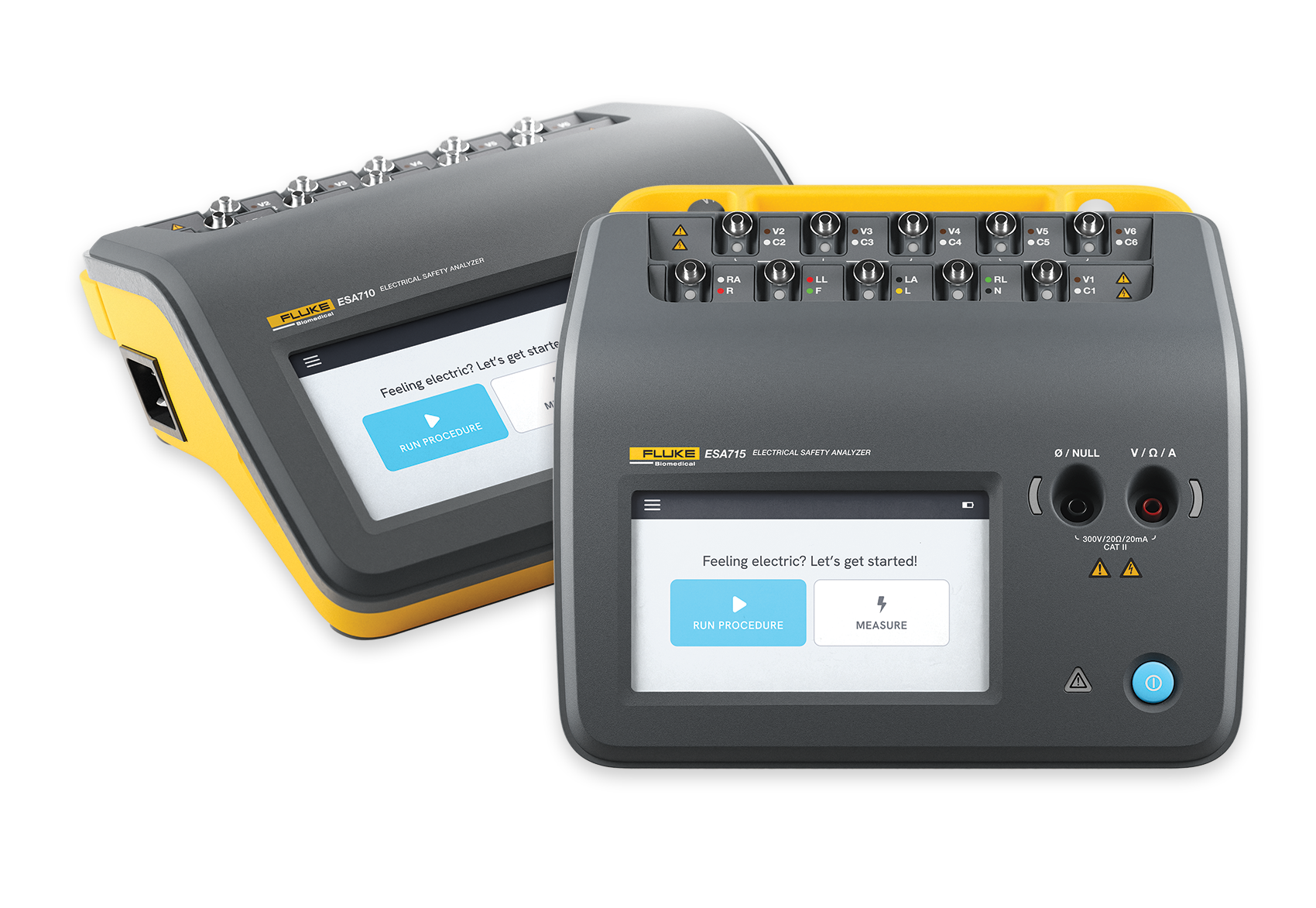

Fluke Biomedical – ESA700 Series

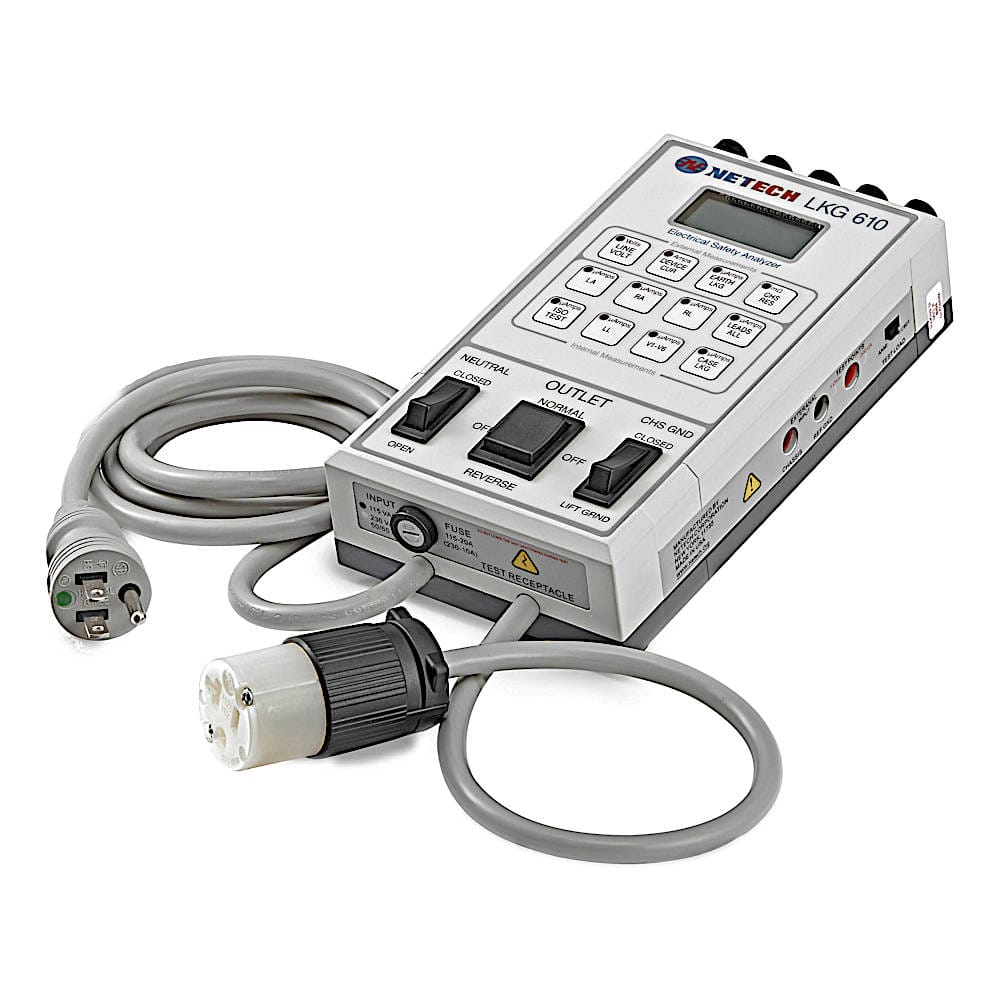

Netech Biomedical – LKG 610

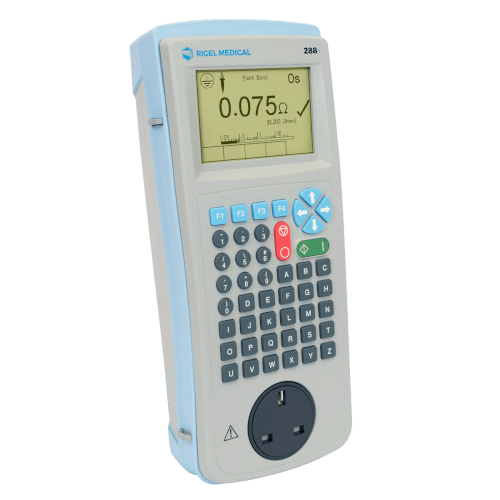

Rigel Medical – 288+
| Company Name: | BC Group International | Datrend Systems Inc | Fluke Biomedical | Nectech Biomedical | Rigel Medical |
|---|---|---|---|---|---|
| Electrical Safety Analyzer: | SA-2600 | vPad-Rugged 2 | ESA700 Series | LKG 610 | 288+ |
| Website: | bcgroupstore.com | datrend.com/product/vpad-rugged-2/ | flukebiomedical.com/esa700-series | netechbiomedical.com/products/electrical-safety-analyzers/lkg-610 | rigelmedical.com/product/406a910-288-plus/ |
| Description: | The SA-2600 is fully automated and microprocessor-based with built-in patient simulator and Bluetooth technology. It has fully customizable autosequences and 4.3-inch color touchscreen, compatible with the MyBC Mobile App. It allows for many tests to be performed on a device using the same unit and lead connections. | The vPad-Rugged 2 features an intuitive 10-inch display and supports 100–240 VAC at 50/60 Hz. With user-programmable automation, control of other analyzers and simulators, and on-device CMMS integration, it delivers fast, efficient, and fully streamlined testing. | The ESA700 Series combines portability, precision, and ease of use in a compact design. 5-inch touchscreen, visual instructions, and LED guides simplify workflows, while built-in ECG and respiration simulation enhance versatility. The ESA700 series sets a new standard for efficient and accurate medical equipment testing. | Compact and easy to use, the LKG 610 delivers accurate results with a large LCD display, one-touch test keys, and calibrated verification points. Featuring 10-lead ECG connectors, dual AAMI/IEC test loads, and portable design, it ensures reliable, comprehensive safety checks. | The Rigel 288+ stands out with automated test sequences, full standard compliance, and keypad for entering asset IDs. It includes a free reporting app for creating PDF test reports, delivering fast, repeatable results and reliable electrical safety testing in one portable device. |
| Year Launched: | 2022 | 2018 | 2025 | 2012 | 2010 |
| Standards Compliance: | AAMI ES1-1993, NFPA-99 | IEC 62353, IEC 60601, AAMI ES-1, NFPA-99, AS 3551 | ANSI/AAMI (NFPA-99), IEC60601-1 2nd and 3rd edition, IEC62353, AS/NZS 3551 | AAMI/ANSI ES1-1985 (AAMI ESI-1993), IEC 601-1 | IEC 60601, IEC 62353, NFPA 99, AS/NZS 3551 |
| Automation & Workflow Features: | Automated test sequences, workflow software integration, field-upgradable software/apps | Automated test sequences, workflow software integration, preventative maintenance routines, field-upgradable software/apps, direct upload to cloud drive applications | Automated test sequences, workflow software integration, preventative maintenance routines, field-upgradable software/apps | n/a | Automated test sequences, workflow software integration, preventative maintenance routines, field-upgradable software/apps |
| Simulation Capabilities: | ECG simulation, dual-lead ECG measurements built-in, patient simulator functionality | ECG simulation, dual-lead ECG measurements, built-in patient simulator functionality | ECG simulation, respiration simulation, dual-lead ECG measurements, built-in patient simulator functionality | Dual-lead ECG measurements. Performs comprehensive safety tests including line voltage, outlet polarity, device current, earth leakage, chassis resistance, case leakage, and point-to-point measurements, with dual AAMI/IEC test load compliance. | n/a |
| Data Management Options: | USB transfer, wireless transfer, cloud/CMMS integration | On-board memory, USB transfer, wireless transfer, cloud/CMMS integration | On-board memory, USB transfer, wireless transfer, cloud/CMMS integration | Optional RS-232 serial port for direct connection to external devices or custom data collection systems; otherwise manual result recording is required. | On-board memory, USB transfer, wireless transfer |
| Form Factor: | Benchtop/desktop | Benchtop/desktop | Handheld | Handheld | Handheld |
| Current Capacity: | 20A | 20 A at 120V | 1 mA ± 25 % at 115 V for AAMI ES1, NFPA 99, 3.5 mA ± 25 % at 230 V for IEC 60601-1, IEC 62353 and EN 50678 / EN 50699, 7.5 mA ± 25 % at 230 V for AS/NZS 3551 | Up to 20 A at 120 V (15 A at 110 V, 10 A at 230 V) | 16A at 120V |
| Pricing: | $2,725 | $4,050-$5,500 | $2,800-$6,300 | $1,655 | $4,885 |
Last updated October 2025.
Information for this guide is based on data submitted by electrical safety analyzer marketers. 24×7 strives for accuracy in all data but cannot be held responsible for claims made by marketers. All electrical safety analyzer marketers get one listing at no charge. Advertisers are offered multiple listings. All electrical safety analyzers may not be included. Email [email protected] to be considered for the next update.
